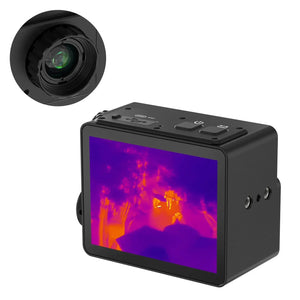

GTGUARD B215AL Thermal Imaging Monocular with 600m Laser Rangefinder
$749.99
Purchase with confidence.
Dispatch details are confirmed after checkout. Unopened items can be requested for return within 14 days of delivery.
Description

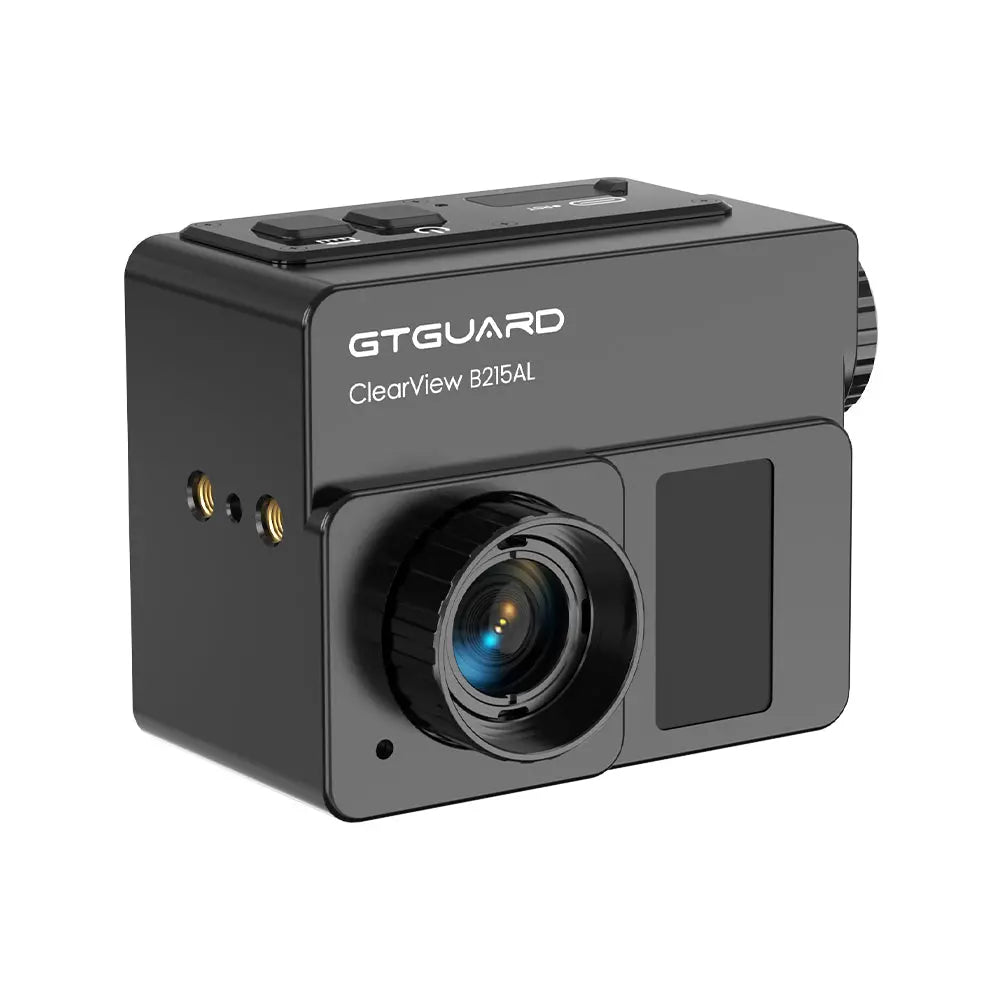

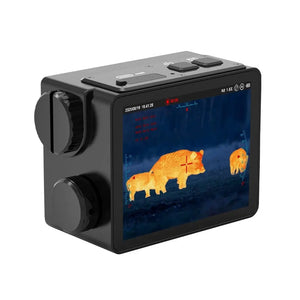

The GTGUARD ClearView B215AL is a compact thermal imaging monocular featuring a 256 × 192 VOx thermal sensor with a 15mm F1.0 objective lens. Designed to provide clear thermal imaging in complete darkness, smoke, fog, and other low-visibility environments, it combines thermal observation, distance measurement, image recording, and wireless connectivity in a durable aluminium housing.
Key Features
- 256 × 192 VOx uncooled thermal sensor
- 12μm pixel pitch with AI Super Resolution (enhanced 384 × 288 display effect)

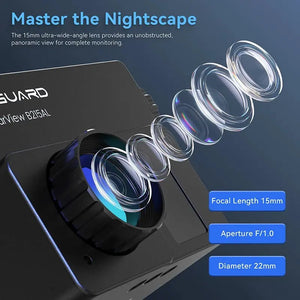

- 15mm F1.0 germanium objective lens

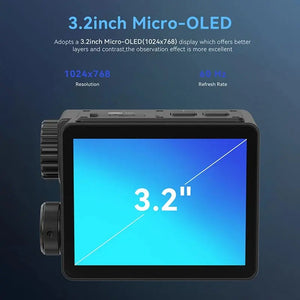

- 3.2" 1024 × 768 LCD display
- Integrated laser rangefinder with measuring range up to 600m
- 1x to 8x digital zoom
- Multiple colour palettes including White Hot, Black Hot, Rainbow and Iron Red
- Built-in photo and video recording
- 32GB internal storage

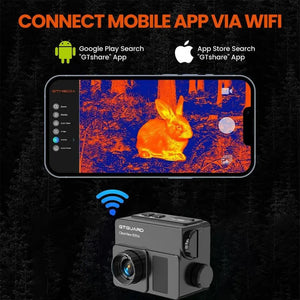

- Wi-Fi connectivity for media transfer and live viewing
- Picture-in-Picture (PiP) viewing mode
- Hot spot detection
- 3-axis gyroscope, accelerometer and electronic compass
- USB-C charging and data transfer
- IP65 water and dust resistant
- Removable rechargeable 18500 Li-ion battery

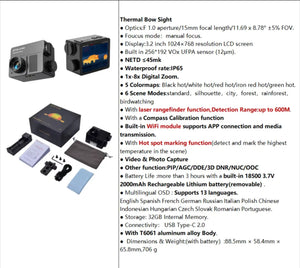

Specifications
| Feature | Specification |
|---|---|
| Thermal Sensor | VOx Uncooled Infrared Detector |
| Resolution | 256 × 192 |
| Pixel Pitch | 12μm |
| NETD | ≤45mK |
| Spectral Range | 8–14μm |
| Objective Lens | 15mm F1.0 |
| Display | 3.2" LCD (1024 × 768) |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Laser Rangefinder | Up to 600m |
| Rangefinder Accuracy | ±1m (≤300m), ±2m (>300m) |
| Storage | 32GB Internal |
| Recording | Photo & Video |
| Wi-Fi | Yes |
| Battery | 18500 3.7V 2000mAh Rechargeable Li-ion |
| Battery Life | Up to 3 Hours |
| Charging | USB-C |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP65 |
| Housing | T6063 Aluminium Alloy |

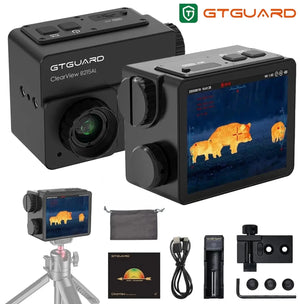

In the Box
- GTGUARD ClearView B215AL Thermal Imaging Scope
- Rechargeable Battery
- Battery Charger
- USB-A to USB-C Cable
- Mounting Bracket
- Bracket Fixing Nuts
- Wrench
- Lens Cleaning Cloth
- Velvet Carry Pouch
- User Manual
FAQ
- What is the detection range? The B215AL includes a laser rangefinder with a measuring range up to 600m.
- Can it record images and video? Yes, it supports built-in photo and video recording with 32GB internal storage.
- Is it suitable for low-visibility conditions? Yes, it is designed for use in darkness, smoke, fog, and similar environments.
- What is the field of view? The field of view is not specified in the provided product details.
